How to Choose the Right Heavy Bag Stand System for a Boxing Gym? — Floor-Standing, Wall-Mounted, or Ceiling-Mounted: Which Option Should You Choose?
Heavy Bag Stand Systems: Floor-Standing, Wall-Mounted & Ceiling-Mounted Solutions
Heavy bag stands are essential equipment for boxing gyms, fitness clubs and home training rooms. A well-designed stand keeps heavy bags stable, supports smooth sliding movement and maximises the use of training space. As a professional source manufacturer of combat sports equipment with years of production experience, Pandawin Sports produces complete heavy bag stand systems in three main types: floor-standing, wall-mounted and ceiling-mounted, plus single ceiling bag sets, all fully customisable to meet different gym layouts and training needs. Every system is engineered with load-rated steel components and undergoes pre-shipment structural checks before leaving our factory.
Floor-Standing Stands: Maximum Stability for Heavy Bag Training
Our floor-standing stands are built for maximum stability. Each stand supports a static load of 300kg and a dynamic load of 150kg, fixed with expansion bolts on concrete floors. The main post height is adjustable from 230cm to 280cm with a standard of 280cm, and the base measures 30cm x 30cm with 8mm thickness for solid support. The overall dimension is 0.5m x 0.5m x 3m, and custom sizes are available upon request. Cross braces come in standard 50cm and 60cm options and can be redesigned according to load requirements. This model is the preferred choice for commercial gyms that need a freestanding solution without ceiling or wall modifications.
Floor-Standing Stand Specifications
| Parameter | Standard Value |
|---|---|
| Static Load | 300kg |
| Dynamic Load | 150kg |
| Main Post Height | Adjustable 230cm–280cm (standard 280cm) |
| Base Dimensions | 30cm x 30cm, 8mm thickness |
| Overall Dimension | 0.5m x 0.5m x 3m (custom sizes available) |
| Cross Braces | Standard 50cm / 60cm, redesign available on request |
| Installation | Expansion bolts on concrete floor |

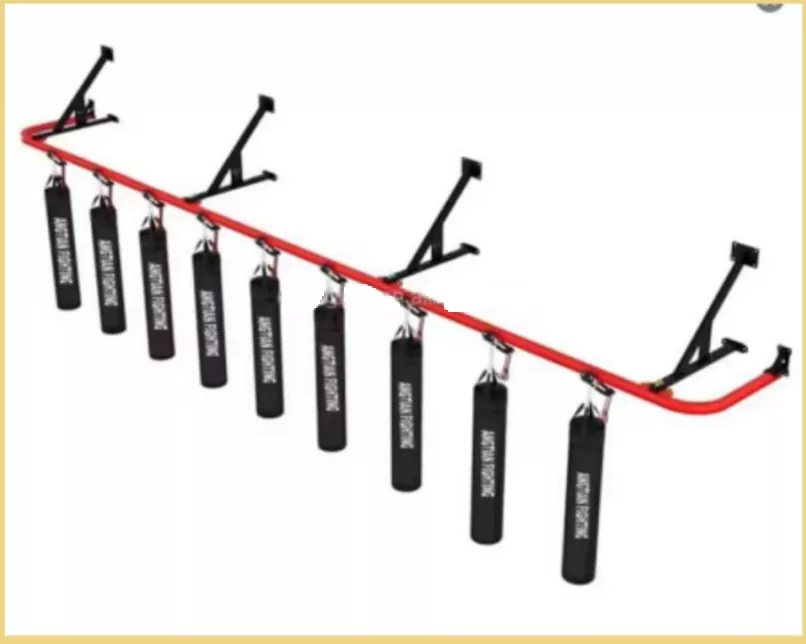

Track System: Smooth Sliding for Multi-Station Training
Our track system uses steel segments up to 2 metres long, joined securely with connector plates and bolts. The arched rail thickness ranges from 5mm to 74mm with a 100mm height, and each trolley carries a static load of 500kg with a dynamic load of 180kg. Trolleys can be locked or allowed to slide freely along the track, giving athletes flexible control during training. This system is particularly effective for gyms that want to maximise floor space by allowing multiple athletes to train along a shared rail, and the locking mechanism prevents unwanted movement during focused heavy bag work.
Track System Specifications
| Parameter | Standard Value |
|---|---|
| Steel Segment Length | Up to 2 metres |
| Arched Rail Thickness | 5mm–74mm |
| Rail Height | 100mm |
| Trolley Static Load | 500kg |
| Trolley Dynamic Load | 180kg |
| Trolley Function | Lockable or free-sliding along track |
| Connection | Connector plates and bolts |

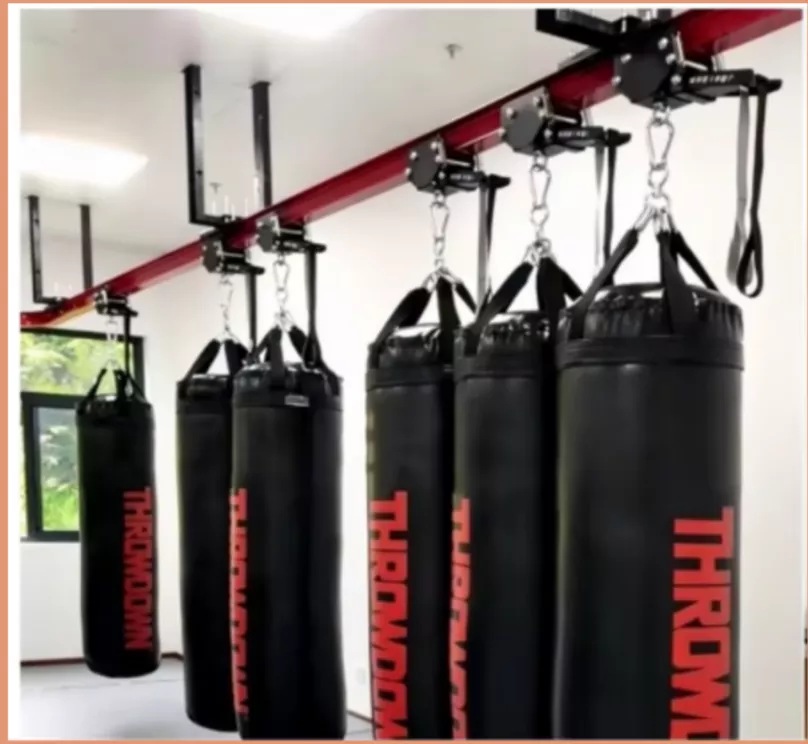

Wall-Mounted Stands: Space-Saving Solution for Concrete Walls
Wall-mounted stands are designed for concrete walls with sufficient load-bearing capacity. The standard bracket extends 60cm from the wall with 60cm screws, and longer extensions are available for an additional charge. Steel profiles measure 100mm x 100mm x 3mm, with a safe spacing of 2 metres between brackets. End stopper plates prevent trolleys from sliding off the rail, ensuring safe training. This configuration is ideal for gyms with limited floor space that still want to offer heavy bag training stations along a wall.
Wall-Mounted Stand Specifications
| Parameter | Standard Value |
|---|---|
| Bracket Extension | 60cm from wall (longer extensions available) |
| Screw Length | 60cm |
| Steel Profile | 100mm x 100mm x 3mm |
| Safety Spacing | 2 metres between brackets |
| Safety Feature | End stopper plates to prevent trolley slide-off |
| Wall Requirement | Concrete wall with sufficient load-bearing capacity |
Ceiling-Mounted Versions: Clean Overhead Installation
Ceiling-mounted versions require poured concrete ceilings and are fixed with expansion bolts, with the same 2-metre safety spacing as wall-mounted systems. This configuration keeps the floor completely clear, making it the best option for gyms that need maximum floor space for other training activities while still supporting heavy bag work. All ceiling-mounted units include end stopper plates and are load-tested before shipment.
Customisation & Global Supply
All our heavy bag stand systems support custom logo printing and tailored design services. Clients can choose bracket height, rail length, trolley configuration and installation layout according to their venue requirements. Our products are exported to numerous countries across Europe, Africa, North America, South America, Asia and Oceania, serving boxing gyms, fitness centres, sports retailers and wholesale distributors. Small trial orders and bulk container shipments are both welcome, and stands can be combined with heavy bags, boxing gloves and other gear for convenient one-stop procurement.
A reliable, professionally engineered heavy bag stand improves training safety and efficiency. With flexible customisation and factory-direct quality, our stand systems help gym owners build durable and professional training spaces for athletes at every level. Contact our sales team at www.pandawinsports.com to discuss your gym layout and receive a tailored quotation.
